Vinyl Deck/Porch Gates

$180.95$205.95

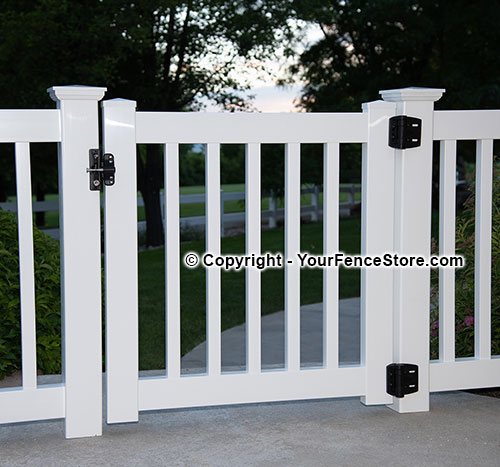

The deck and porch gates we sell are one of the best on the market. The components we have chosen have great strength and durability.

Gate Hardware

If you need hinges or latches, enter the quantity below.

Gate Kits for Vinyl Deck and Railing

Vinyl Railing Gate Kit Contents: top and bottom rails, side rails, 1 pack of stainless steel screws, balusters (5 balusters for 34 inch wide gate and 7 balusters for 46 inch wide gate) and caps for side rails.

Colors: White

Height: 35.5 inches. (Gates can be special ordered up to 41.5″” high in square or colonial balusters. Please call or email for pricing.)

Single Gate Width: 34″” wide railing gate kit will fit a 36″” wide opening and a 46″” wide railing gate kit will fit a 48″” wide opening. The two inch difference allows for a gap between the latch and hinges (if using our Kwik Fit Hinges only subtract 1 1/2 inches).

Double Swing Gate Width: to calculate the width for double swing gates, take the measurement from inside to inside of the two posts. Subtract 2 1/2″” (if using our Kwik Fit Hinges only subtract 2 inches) and divide that number by two. This should provide the width for each gate. For example, if your opening is 70 1/2″” you would subtract 2 1/2″” and divide by two. Each gate would be 34″” wide. We recommend using the Lokk latch when installing a double swing gate.

Custom Gates: Just tell us the dimensions of the gate you want. Don’t forget to subtract for the latch and hinge allowance.

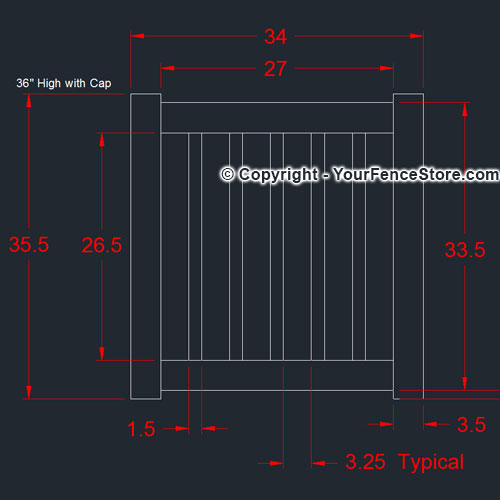

34″ Wide Gate: Top and bottom rails can be cut so the gate width is between 29 and 34 inches wide. Gate ships at 34 inches wide. Picture above is shown at 34 inches wide. Once cut the space between the side rails and first picket will be less.

46″ Wide Gate: Top and bottom rails can be cut so the gate width is between 41 and 46 inches wide. Gate ships at 46 inches wide. Once cut the space between the side rails and first picket will be less.

Gate Hinges and Latch are sold separately. D & D Gate Hardware or Steel Gate Hardware

Weight N/A
Dimensions N/A
Color

White

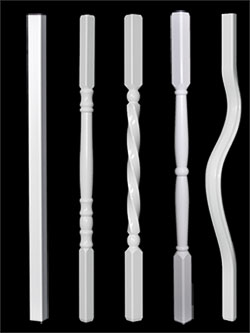

Baluster Style

Square, Colonial, Twist, Classic, Belly, Rectangle

Gate Width

34", 46"

Specifications & Drawings: PDF file click here Installation Instructions: click here
